Unit 1.1 – Introducing Calculus: Can Change Occur at an Instant?

AP® Calculus AB & BC | Formula Reference Sheet

Central Question: Can change occur at an instant? Yes! Calculus allows us to measure instantaneous change using limits, which form the foundation for derivatives and the entire study of calculus.

📊 Average Rate of Change (AROC)

Average Rate of Change Formula
\[ \text{AROC} = \frac{f(b) - f(a)}{b - a} = \frac{\Delta y}{\Delta x} \]

This represents the slope of the secant line connecting two points \((a, f(a))\) and \((b, f(b))\) on a curve.

📝 Note: Average rate of change measures change over an interval \([a, b]\). Think of it as the "average speed" between two moments in time.

Alternative Notations for AROC

\[ \text{AROC} = \frac{f(x + h) - f(x)}{h} \]

Where \(h\) represents the change in \(x\) (i.e., \(h = b - a\))

\[ \text{AROC} = \frac{f(x) - f(a)}{x - a} \]

Useful when considering a fixed point \(a\) and variable point \(x\)

📏 Secant Line

Secant Line Definition

A secant line is a line that passes through two points on a curve.

\[ m_{\text{secant}} = \frac{f(x_2) - f(x_1)}{x_2 - x_1} \]

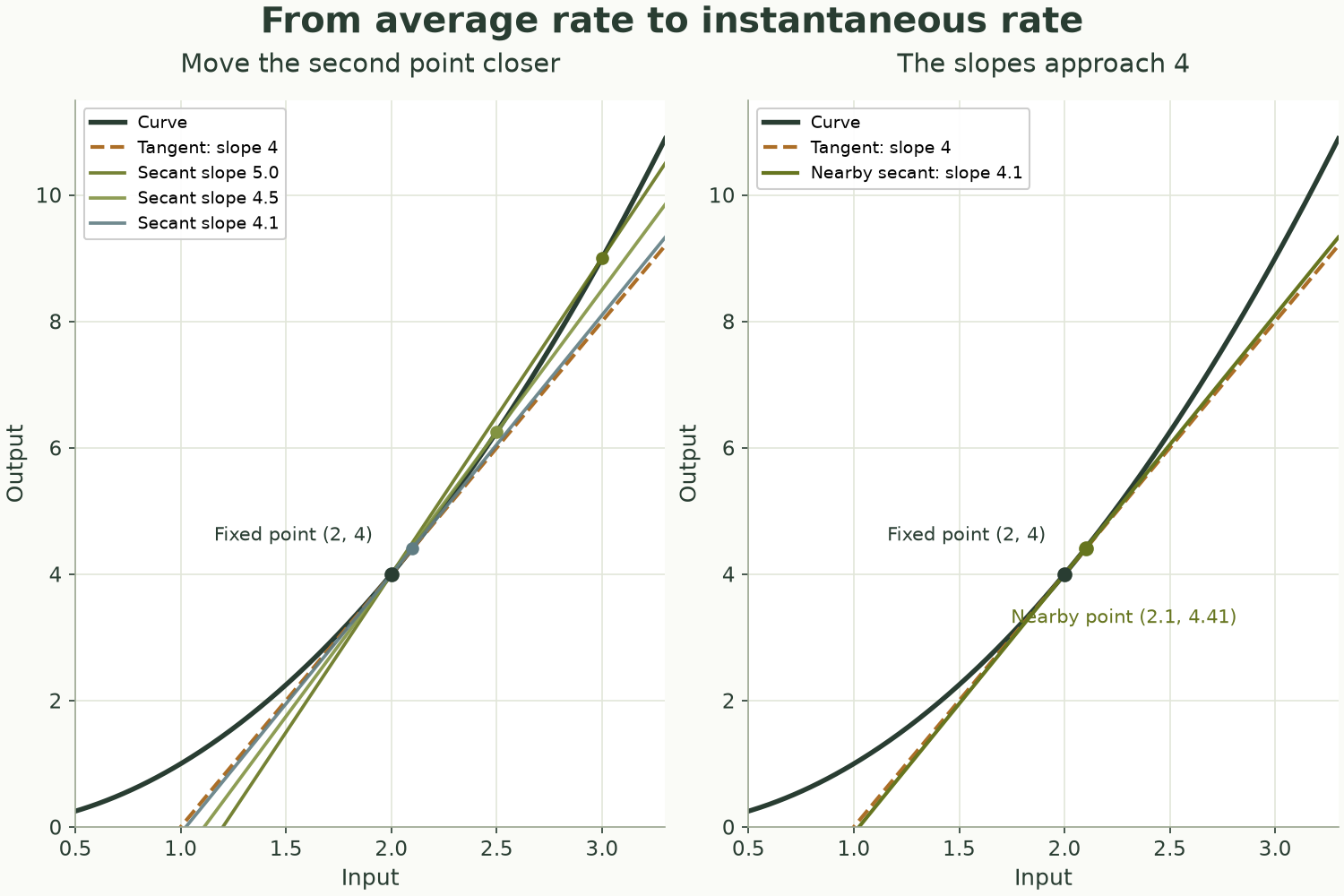

💡 Key Concept: As the two points get closer together (\(x_2 \to x_1\)), the secant line approaches the tangent line, and the average rate of change approaches the instantaneous rate of change.

⚡ Instantaneous Rate of Change (IROC)

Instantaneous Rate of Change (Using Limits)
\[ \text{IROC at } x = a = \lim_{h \to 0} \frac{f(a + h) - f(a)}{h} \]

This represents the slope of the tangent line at the point \((a, f(a))\).

Alternative Form
\[ \text{IROC at } x = a = \lim_{x \to a} \frac{f(x) - f(a)}{x - a} \]

📝 Note: This limit definition is the foundation for the derivative, which you'll study in Unit 2. The derivative \(f'(a)\) gives the instantaneous rate of change at \(x = a\).

📐 Tangent Line

Tangent Line Definition

A tangent line is a line that touches a curve at exactly one point (locally) and has the same slope as the curve at that point.

\[ m_{\text{tangent}} = \lim_{h \to 0} \frac{f(a + h) - f(a)}{h} \]

🔄 Difference Quotient

The Difference Quotient (Definition of the Derivative)
\[ f'(x) = \lim_{h \to 0} \frac{f(x + h) - f(x)}{h} \]

The difference quotient measures the rate of change as \(h\) (the change in \(x\)) approaches zero. This is the limit definition of the derivative.

Alternative Form (Using Two Points)
\[ f'(a) = \lim_{x \to a} \frac{f(x) - f(a)}{x - a} \]

⚠️ Important: The difference quotient is undefined when \(h = 0\) or \(x = a\) (division by zero). This is why we use limits to find the instantaneous rate of change.

📋 Comparison: Average vs. Instantaneous Rate of Change

Aspect Average Rate of Change (AROC) Instantaneous Rate of Change (IROC)
Measures Change over an interval Change at a specific point
Geometric Meaning Slope of secant line Slope of tangent line
Formula \(\frac{f(b) - f(a)}{b - a}\) \(\lim_{h \to 0} \frac{f(a+h) - f(a)}{h}\)
Requires Limits? No Yes
Related To Average speed, average velocity Instantaneous velocity, derivative
Number of Points Two points: \((a, f(a))\) and \((b, f(b))\) One point: \((a, f(a))\)

💡 Tips, Tricks & Common Mistakes

✅ Essential Tips

  • Understanding "h" notation: \(h\) represents a small change in \(x\). As \(h \to 0\), we approach the instantaneous rate of change.
  • Secant to Tangent: Visualize a secant line becoming a tangent line as the two points get infinitely close together.
  • Estimation Technique: To estimate IROC, calculate AROC for smaller and smaller intervals around the point of interest.
  • Sign Matters: Positive IROC means the function is increasing; negative IROC means decreasing at that point.
  • Units: Rate of change has units of \(\frac{\text{output units}}{\text{input units}}\). For example, if \(f(t)\) is position in meters and \(t\) is time in seconds, IROC has units of m/s (velocity).

🎯 Math Tricks & Shortcuts

Trick 1: When estimating IROC from a table, use points symmetrically around the target value for better accuracy:

\[ f'(a) \approx \frac{f(a+h) - f(a-h)}{2h} \]

This is called the symmetric difference quotient and gives more accurate estimates.

Trick 2: For graphical problems, remember:

  • Steep slope = Large rate of change (positive or negative)
  • Horizontal tangent = Rate of change is zero
  • Vertical tangent = Rate of change is undefined (not in AP Calc AB/BC scope for 1.1)

Trick 3: Quick check for your work:

  • If \(f(x)\) is linear, AROC = IROC everywhere (constant rate of change)
  • If \(f(x)\) is nonlinear, AROC varies depending on the interval chosen

❌ Common Mistakes to Avoid

  • Mistake 1: Forgetting to take the limit when finding IROC (just computing \(\frac{f(x+h)-f(x)}{h}\) without \(h \to 0\))
  • Mistake 2: Confusing secant lines (two points) with tangent lines (one point)
  • Mistake 3: Setting \(h = 0\) directly in the difference quotient (this gives \(\frac{0}{0}\), which is indeterminate)
  • Mistake 4: Mixing up \(f(a+h)\) and \(f(a) + h\) — these are NOT the same!
  • Mistake 5: Forgetting to subtract in the correct order: \(f(b) - f(a)\) corresponds to \(b - a\) (not \(a - b\))

📝 Step-by-Step: Estimating Instantaneous Rate of Change

Process to Estimate IROC at \(x = a\):

  1. Choose values of \(x\) close to \(a\) (both smaller and larger than \(a\))
  2. Calculate the average rate of change: \(\frac{f(x) - f(a)}{x - a}\)
  3. Make the interval smaller (choose \(x\) values closer to \(a\))
  4. Observe what value the AROC approaches as \(x \to a\)
  5. That limiting value is the instantaneous rate of change at \(x = a\)

🌍 Real-World Applications

  • Physics: Instantaneous velocity is the IROC of position with respect to time: \(v(t) = \lim_{h \to 0} \frac{s(t+h) - s(t)}{h}\)
  • Economics: Marginal cost is the IROC of total cost with respect to quantity produced
  • Biology: Population growth rate at a specific moment
  • Chemistry: Reaction rate at an instant in time
  • Engineering: Rate of heat transfer, fluid flow rate at a specific point

📚 Key Vocabulary & Concepts

  • Calculus: The mathematics of change and motion
  • Limit: The value a function approaches as the input approaches some value
  • Average Rate of Change: Change in output divided by change in input over an interval
  • Instantaneous Rate of Change: Rate of change at a single point (found using limits)
  • Secant Line: A line passing through two points on a curve
  • Tangent Line: A line that touches a curve at exactly one point and has the same slope as the curve at that point
  • Difference Quotient: \(\frac{f(x+h) - f(x)}{h}\), the expression whose limit defines the derivative
  • Derivative: The instantaneous rate of change (introduced in Unit 2)

🔗 Connection to Future Units

Unit 1.1 sets the foundation for:

  • Unit 1.2-1.16: Formal definition and properties of limits
  • Unit 2: The derivative (formal definition uses the concepts from 1.1)
  • Unit 3: Applications of derivatives (rates of change in real-world contexts)
  • Unit 6: Integration (accumulation of change, the reverse of instantaneous change)

⚡ Quick Reference Card

Concept Formula What It Represents
AROC \(\frac{f(b) - f(a)}{b - a}\) Slope of secant line
IROC \(\lim_{h \to 0} \frac{f(a+h) - f(a)}{h}\) Slope of tangent line
Difference Quotient \(\frac{f(x+h) - f(x)}{h}\) Rate of change expression
Alternative AROC \(\frac{f(x+h) - f(x)}{h}\) Using \(h\) for interval length
Symmetric Difference \(\frac{f(a+h) - f(a-h)}{2h}\) Better IROC estimate

Remember: The concept of instantaneous change is the heart of calculus! Master these foundations in Unit 1.1, and you'll be well-prepared for derivatives, integrals, and all applications of calculus. 🚀
